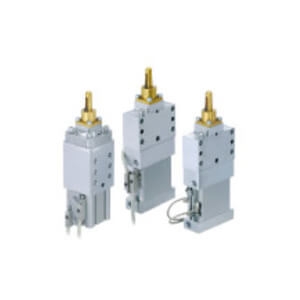

C(L)KQG*, Pin Clamp Cylinder, Compact Type

Description

SMC's compact type pin clamp cylinder with a standard magnet, series C(L)KQ series was designed with 4 body types for a broad range of installation conditions.  There are 55 types of guide pins available and an optional locking mechanism.  C(L)KQ series  has positioning and clamping at one time.  Precision adjustment of clamping height is possible by choosing the with-shim type.  Adjustment range: 0.5 to 3mm. - Magnetic field resistant auto switch mounting type - High or Low clamping heights available - 29mm width - Compact design makes it applicable to a broad range of workpieces - Round and diamond guide pins - 32mm bore size
