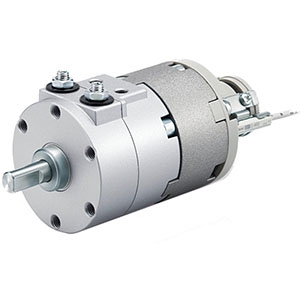

CRBW30-90-B

Description

Series CRB rotary actuator is available in 10, 15, 20, 30, and 40 bore.  The CRB series is available in either 90°, 180°, and 270° rotation angle.  The lightweight design features a compact body with a built-in angle adjuster unit and auto switch unit.  Rotating angle can be easily checked using the chamfered position of the shaft.  Comes with external angle adjust unit (-B) or external angle adjust unit and vertical auto switch unit.  - Same side piping, wiring, and angle adjustment - Easy-to-adjust start and end position angle adjustment bolts (±10°) - Compatible mounting with CRB2 series auto switch units - RoHS compliant
