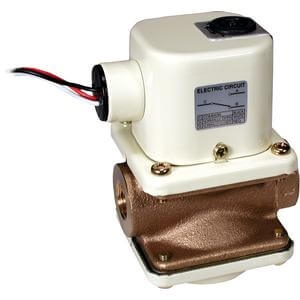

IFW520-04-03

Description

IFW is a mechanical switch for the detection and confirmation of liquid flow.  The flow body houses a diaphragm responsive to flow rate.  A connected rod and lever mechanism triggers a micro switch at a manually adjustable set point.  An optiional light, either neon (VAC) or LED (VDC), can indicate operation.  Compatible liquids must be non-corrosive to the brass and copper alloy wetted parts and NBR or optional FKM diaphram.  Wiring method can be normally open or closed with a range of voltages.  A terminal box and CE compliance are also optional. - Flow ranges (lpm): 1-10, 10-20, 20-50 - Port sizes (Rc, NPT, G): 3/8, 1/2, 3/4 - Temperature rating (°C): -5 to 60 - Operating pressure (MPa): 0.1 to 0.6 - Withstand voltage: 1500 VAC (one minute)
