IS10E-20N02-PR-A

Description

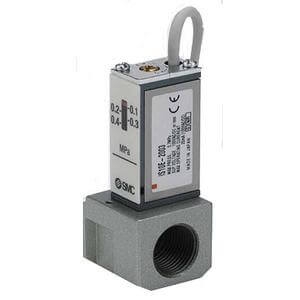

ISE10E is a pressure switch with a linear mechanical set point indicator, for modular installation with SMC's FRL units.  The switch housing attaches to a threaded block for mounting inline with the FRL.  The housing assembly includes a reed switch activated by a piston-mounted magnet.  A screw adjusts the spring loading the piston to the switch point.  Two pressure ranges are available, along with MPa and psi units on the setting scale.  The adapter block has 5 port sizes, in Rc, NPT or G thread to mount to 3 FRL body sizes.  IS10E is CE and RoHS compliant, with an IP40 enclosure rating. - Mechanical pressure switch with threaded adapter block for FRL mounting - Set pressure range: 0.1 to 0.4 MPa, or 0.1 to 0.6 MPa - Reed switch output of circuit voltage (NO below set point) - Electrical circuit: up to 100 V AC/DC - Repeatability: ±0.05% of F.S. - Hysteresis: Fixed 0.08 MPa or less
