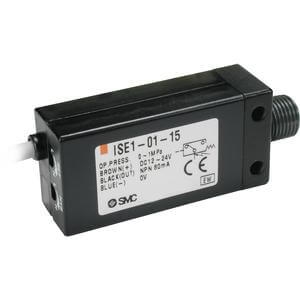

ISE1L-01-14

Description

ISE1 is a basic pressure switch with digital output and optional analog voltage output.  The ISE1 monitors the pressure of any non-corrosive, non-flammable gas.  Low and high pressure ranges are offered, as well as metric or NPTF male thread connections.  Rotary trimmers adjust the switch set point and variable hysteresis if 1 output, or two set point trimmers if 2 output.  A red/green LED indicator also lights when the output signal is ON.  Electrical connections include a 3 wire grommet cable or 4 wire snap-in connector.  ISE1 is CE and RoHS compliant, with an IP40 enclosure rating. - Basic pressure switch with rotary adjustment of digital outputs, plus 1-5V output - Positive pressure range: 0 to 100kPa, 0 to 1 MPa - Output options: 1 or 2 signal outputs (NPN or PNP), with or without analog voltage - Power supply requirement: 12 to 24 VDC - Repeatablility: ±1% of F.S. - Port sizes: 1/8 Rc or 1/8 NPTF male,(incl. M5x0.8 female)
