ISE35-N-65-PA

Description

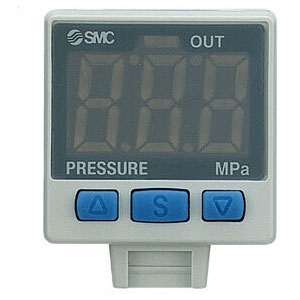

ISE35 is a digital pressure sensor that integrates with multiple regulators and FRL combinations from SMC, including series AC, AR, ARM, ARP and AW.  The ISE35 mounts into a ported interface on any compatible series using an included mounting kit.  A detachable 3-wire cable includes power and switch output leads.  Instantaneous readings are shown on the 3 digit, 2 color display.  The color can be set to red or green, or shifted from one to the other to alert when reaching a set point.  An indicator for the switch output is also visible.  Additional functions enhance security, power saving, and response time. - Verify regulator settings with digital gauge in dry environments - Pressure range: 0-1 MPa - 4 pressure units: MPa, kgf/cm2, bar, psi - Switch output: Hysteresis or window comparator (NPN or PNP) - Display accuracy: ±2% F.S. - Repeatability: ±1% F.S.
