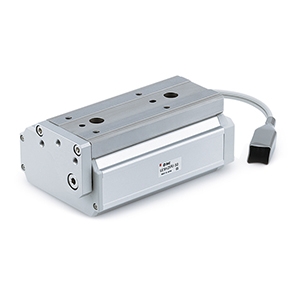

LESH25LEJ-50

Description

The LESH electric actuator combines a motor and ball screw drive, worktable, and linear guide in compact body.  The machined table is more rigid than the LES formed table, enabling higher horizontal loads and improved deflection from offset loading.  Body orientations include basic, symmetrical, and inline mounted motor.  This version includes a 24VDC motor with a battery-less absolute encoder.  This encoder allows the actuator to be powered down without losing its positional awareness.  The machine's PLC can access the controller's operational and positional step data through several fieldbus protocols, IO-Link, or parallel I/O. - Body size: 25 - Maximum work load: 9 kg (horizontal), 4 kg (vertical) - Maximum pushing force: 180 N - Maximum speed: 400 mm/s - Strokes: 50, 100, 150 - Positioning repeatability: ±0.05mm
