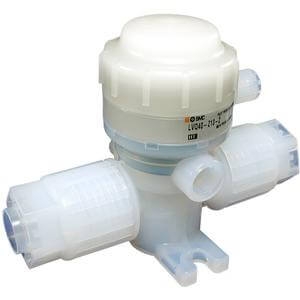

LVQ-Z, 2 Port Chemical Valve, Flare Integral Fitting Type (LQ3), Air Operated

Description

Series LVQ is a 2 port chemical valve with a non-metallic exterior. A high density PVDF housing offers increased chemical resistance and the special diaphragm construction insures gentle opening and closing preventing the formation of micro-bubbles. The LVQ guide ring eliminates lateral motion of the poppet, which reduces internal leakage. - 2 port chemical valve - Non-metallic exterior - LQ3 integral fitting - Tube O.D.: 1/4", 3/8", 1/2", 3/4", 1", ø3, ø4, ø6, ø8, ø10, ø12, ø19, ø25 - Orifice: ø4, ø8, ø10, ø16, ø22 - Cv factor: .35 to 8.0
