PPA101-M

Description

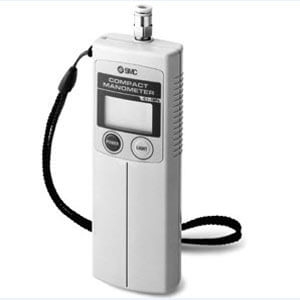

PPA is a handheld pressure measuring device, also known as a manometer.  Optional pressure ranges include high and low pressure, or vacuum.  Simple controls include a power button and a back light for viewing the display in dark locations.  The meter is battery operated and shuts off automatically after 5 minutes without use.  Connect to a pressurized system with the attached one-touch fitting.  Display can show instantaneous pressure, or hold the peak or bottom pressure during the connection.  PPA manometers are CE and RoHS compliant, with an IP40 enclosure rating. - Compact, battery powered meter for mobile pressure confirmation - Power supply: 2 AA (3V) batteries with low battery indicator - 7 pressure units: MPa, kPa, kgf/cm2, bar, psi, inHg, mmHg - Accuracy: ±2% of F.S. - Repeatability: ±1% of F.S. - Piping options: One touch fitting for ø4mm or ø6mm tubing
