Description

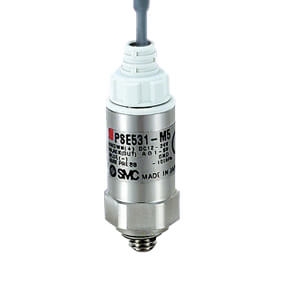

PSE531 and PSE533 are remote vacuum sensors with a 1 to 5V analog signal output.  531 is for low vacuum range of -101 to 0 kPa, while PSE533 is for compound pressure from -101 to 101 kPa.  PSE sensors can monitor any non-corrosive, non-flammable gas.  The accuracy and environmental capabilities are suitable for general purpose applications.  The cable is replaceable, with a locking thread relief.  PSE531 and PSE533 are CE and RoHS compliant, with IP40 enclosure ratings. - Economical remote vacuum sensor in a small IP40 package - Power supply requirement: 12 to 24 VDC - 1 to 5V analog output - Accuracy ±2% of F.S. - Repeatability: ±1% of F.S. - Port sizes: M5 x 0.8 male; ø6mm or ø1/4" plug-in connector for fittings
