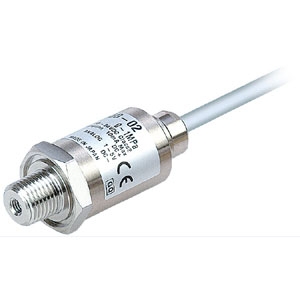

PSE564-C01-28

Description

PSE560 and 564 are remote pressure sensors with an analog V or mA signal output.  PSE56* sensors measure pressure of any liquid or gas non-corrosive to 316L stainless steel.  560 is for a standard pneumatic system's pressure range, while the 564 model is for low pressure.  An accuracy of ±1% of the full scale rated pressure range is suitable for general purpose applications.  Includes a fixed cable with field wired connector option.  PSE560 and PSE564 are UL/CSA, CE and RoHS compliant, with IP65 enclosure ratings. - General purpose remote pressure sensor for liquid or gas at 1 MPa or less - Power supply requirement: 12 to 24 VDC - 1 to 5V or 4 to 20 mA analog output - Accuracy: ±1% of F.S. - Repeatability: ±0.2% of F.S. - Port sizes: 1/8 or 1/4 Rc or NPT (incl. M5 female); 1/8 Rc (female); 1/4 URJ; 1/4 TSJ
