Description

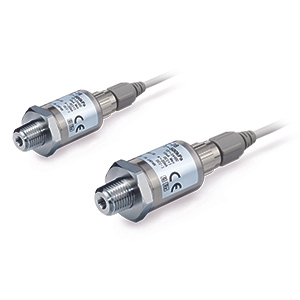

PSE570 remote pressure sensors offer positive pressure ranges from 500 kPa to 10 MPa, as well as a compound range of -100 to 100kPa.  Enhancements include increased proof pressures and a higher withstand voltage for improved durability in unpredictable conditions.  A nickel-plated C3604 brass port and ceramic sensor impart compatibility with a wide range of liquids and gases.  These models feature IO-Link or two switch outputs.  IO-Link provides measured pressure values, device information and status, and report of any cable break when connected through any IO-Link master.  Switch outputs respond to a preselected set point and hysteresis value with an ON / normal or OFF / reversed output signal.  Accuracy is ±1% full scale for pressure below 1 MPa and ±2.5% for higher ranges. PSE570 sensors are CE and RoHS compliant, with an IP65 enclosure rating. - Remote high pressure sensor with enhanced durability for liquid or gas - Power supply requirement: 12 to 24 VDC - IO-Link or 2 NPN / PNP open collector outputs - Accuracy: ±1% F.S. (compound, 500 kPa, 1 MPa); ±2.5% F.S. (2, 5,or 10 MPa) - Repeatability: ±0.2% F.S. (compound, 500 kPa, 1 MPa); ±0.5% F.S. (2, 5, or 10 MPa) - Port sizes: 1/8 or 1/4 Rc male (incl. M5 female)
