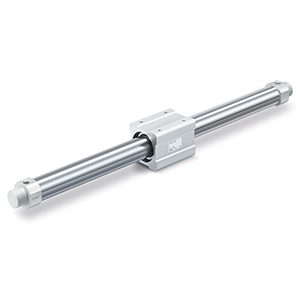

CY3B15-500Z

Description

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard. - Bore sizes: 6, 10, 15, 20, 25, 32, 40, 50, 63 - Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, up to 5000mm manufacturable stroke - Minimum operating pressure: 0.12~0.16 MPa (17~23psi) - Speed: 50~500 mm/sec
