VM430-01-00

Description

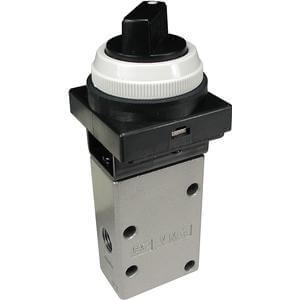

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv. - Fluid: air - Operating pressure: -100kPa to 1.0MPa - Effective area (Cv): 7mm 2 (0.38) - Ambient and fluid temperature: -5° to 60°C (no freezing) - Port size (nominal size): Rc(PT) 1/8 (6A)
